PCIE phone recording card PCIE card Voice logger

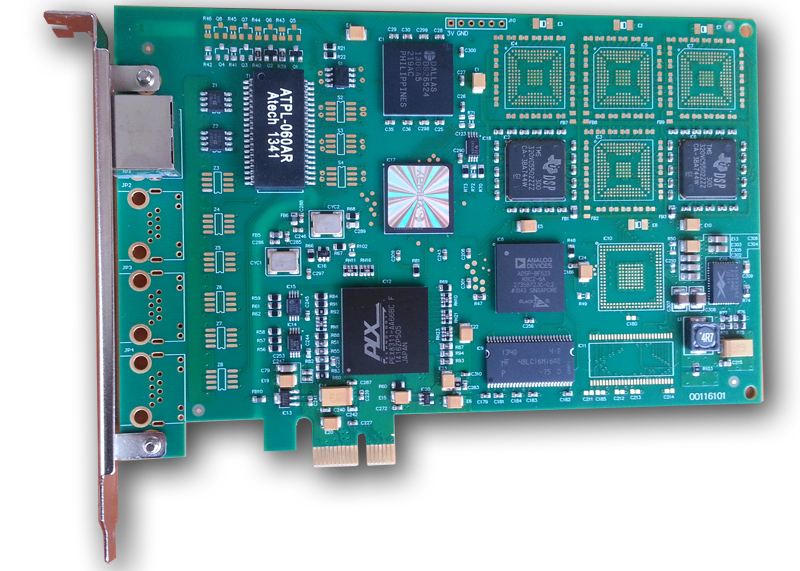

8ch PCIe Port Analog phone recording card

Model:ZS-3308


Max 5 pcs cards in a PC(40ch.)
size: 180*112*20 mm

16ch PCIe Port Analog phone recording card

Model: ZS-3316


Max 5 pcs cards in  PC (80ch.)
size: 260*112*20 mm


PCIe slot , 2 times compression hardware,  Record 70 hours /G HDD






TVRS Telephone Recording System Basic Function

Supports Windows 11/win10/win8/win7/win XP operation System
• Support DTMF/FSK incoming CallerID, Support Incoming CallerID Popup​​​​
Support work with the Call accounting system software (CAS) to Extension.

• Consists of the incoming customer management system to recognize the incomers and the Popup Screen
• Support monitor the conversation for every line on the real time by LAN
• Supports three recorder mode : Phone, Audio, Key
• Support list and print all the dialed-in, dialed-out and missed calls
• Can record the direct call. Support the simultaneous recording for the direct phone and extension
• Supports auto-backup, FTP back up the files onto the burning ROM, supports the auto fold repeat.
• The outward phone cables, extension cables, ISDN catalog cables, output cables for the wireless interphones are
• Alarm information displayed on the screen or in the e-mails when e meeting abnormal situation (cable broken)
• Support duple/quintuple/octuple compression and save and WAV format
• Support inquire, play and monitoring for the network.
• With the default multi-language of English, French, Portuguese, Vietnamese,Turkish, Spanish, Korea, Arabic, Polish, Hebrew, Serbian,


Requirement for the computer


Suggested PC CPU:
More than P4 3.0
Suggested Memory:
More than 2 GB
Suggested Hard Disk:
More than 500 GB

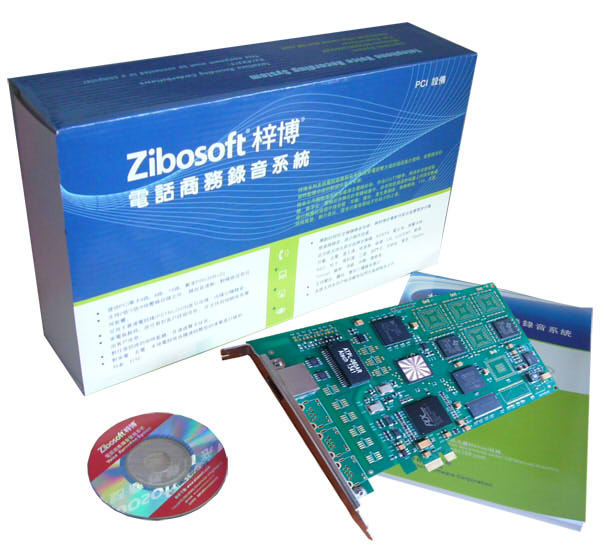

  3308 Packing list:3308*1,USB keypro*1,Software CD*1,RJ11 line*4
  3316 Packing list:3316*1,USB keypro*1,Software CD*1,RJ45 line*4





ZS-3316  Connection:

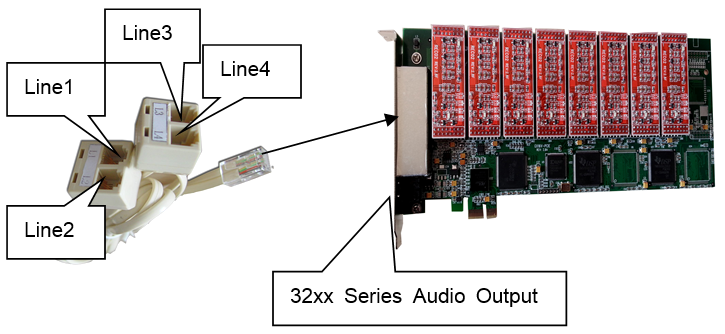

Zibosoft PCI Phone recording Card Connection





PCIe 3300 Series Tech Parameter:


Max installation  in  1 PC

:Support 5 pieces work with  in One PC

Compress Rate

:Hardware=2 times compression

Working Temperature

:5℃-40℃

Power Consumption

:≤15W

Humidity

:5%-85%

Storage Temperature

:-20℃-70℃

Voice Distortion Rate

:≤2%

Voice Function

:WAV, VC2, VC5,AGC

Module voltage resistance:

:250V

Data Rate

:64KBPS、32KBPS、16KBPS

Data Transmission

:Binary asynchronous serial

Codec

:HDB3 /AMI

Signal-To-Noise

:≥30dB

Frequency Range

:300-3400Hz(±3dB)

Caller ID

:FSK、DTMF

DTMF Code

:0~9、*、#、A、B、C、D

FSK Modulate Mode

:Logical 0:2200Hz±1%

Input Impedance

:600Ω

Signal Monitor

:Signal sound,voice sound

Frame Structure

:CCITT G.704-1988

Clock and Data Recorering

:Complied to CCITT Rec.G.823-1988

Shaking limit:   Complied to CCITT Rec.G.823,G.737,G.739,G.742-1988
Phone Status Judge Voltage 70-100V(Ring), 20-48V(Idle) , 5-17V(Hang up), 3.2V(Power off)
