Model:ZS-D6016

16ch Digital Extension Recording Card

Model:ZS-D6124

24ch Digital Extension Recording Card


Digital EXT cards​
(Support PBX type: Alcatel, Avaya, Ericsson, Harris, NEC, Mitel, Nortel, Samsung, Siemens, Toshiba, Tadiam, Tecom )

PCI slot , 8 times compression hardware, Can Record 280 hours /G HDD






Telephone Voice Recording System TVRS  basic function


Supports Windows XP/2000//2003/NT/Vista/Win7/Win8/Win10  32/64 Bit System
• Support PBX Digital EXT Recorder.
  (
Alcatel, Avaya, Ericsson, Harris, NEC, Mitel, Nortel, Samsung, Siemens, Toshiba, Tadiam, Tecom
• Support DTMF/FSK incoming CallerID, Support Incoming CallerID Popup​​​​
• Consists of the incoming customer management system to recognize the incomers and the Popup Screen
• Support monitor the conversation for every line on the real time by LAN
• Supports three recorder mode : Phone, Audio, Key
• Support list and print all the dialed-in, dialed-out and missed calls
• Can record the direct call. Support the simultaneous recording for the direct phone and extension
• Supports auto-backup, FTP back up the files onto the burning ROM, supports the auto fold repeat.
• The outward phone cables, extension cables, ISDN catalog cables, output cables for the wireless interphones are
• Alarm information displayed on the screen or in the e-mails when e meeting abnormal situation (cable broken)
• Support duple/quintuple/octuple compression and save and WAV format
• Support inquire, play and monitoring for the network.
• With the default multi-language of English, French, Portuguese, Vietnamese,Turkish, Spanish, Korea, Arabic, Polish, Hebrew, Serbian,




Requirement for the PC Hardware


Suggested PC CPU:
More than P4 3.0
Suggested Memory:
More than 2 GB
Suggested Hard Disk:
More than 500 GB

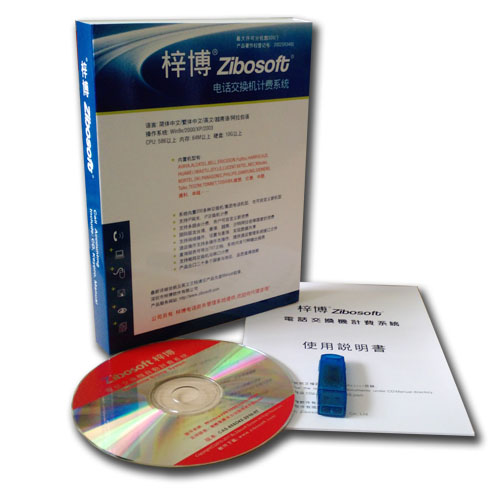

ZS-D6000                         6008  Packing list:6008*1,USB keypro*1,Software CD*1,24 line aceess box*1
                                          6016  Packing list:6016*1,USB keypro*1,Software CD*1,24 line aceess box*1
                                          6024  Packing list:6024*1,USB keypro*1,Software CD*1,24 line aceess box*1


ZS-D6100                         6108  Packing list:6108*1,USB keypro*1,Software CD*1,24 line aceess box*1
                                          6116  Packing list:6116*1,USB keypro*1,Software CD*1,24 line aceess box*1
                                          6124  Packing list:6124*1,USB keypro*1,Software CD*1,24 line aceess box*1











PCI/PCIe D6000 Tech Parameter:


ZSD6000/6100 Card Size

:180mm*111mm*20mm

Max insatllation for 1 PC

:8 pieces cards work together in One PC

Compress Rate

:Hardware=8

Working Temperature

:0℃-55℃

Power Consumption

:≤8.5W

Humidity

:8%-90%

Voice Codec

:PCM A law@64

  bps, SPEEX@8Kbps

Voice Distortion Rate

:≤2%

Voice Function

:MP3,G7.29

Data Rate

:16KBPS

Signal-To-Noise

:≥30dB

Input Impedance

:>1000Ω

Clock and Data Recorering

:CCITT A/μ-Law 64kbps IMA ADPCM 32kbps
