Type:ZS-D5430(1E1)
Max 5 pcs cards in  PC
Type:ZS-D5360 (2E1)
Max 3 pcs cards in  PC


E1/PRI/SS1/SS7 Digital TRK signal
PCI slot ,8 Rate compress hardware, Can Recorder 280 hours /G HDD


TVRS system basic function


Supports Windows XP/2000//2003/NT/Vista/Win7/Win8  32/64 Bit System
• Is PCI card,30 channels (30B D), RJ45 jacket. Support E1,PRI Signal.
• Support work with 45/D5000 series hardwae together in same PC

• Support work with the CAS recorder to Extension.
• Support DTMF/FSK incoming CallerID, Support Incoming CallerID Popup​​​​
• Consists of the incoming customer management system to recognize the incomers and the Popup Screen
• Support monitor the conversation for every line on the real time by LAN
• Supports three recorder mode : Phone, Audio, Key
• Support list and print all the dialed-in, dialed-out and missed calls
• Can record the direct call. Support the simultaneous recording for the direct phone and extension
• Supports auto-backup, FTP back up the files onto the burning ROM, supports the auto fold repeat.
• The outward phone cables, extension cables, ISDN catalog cables, output cables for the wireless interphones are
• Alarm information displayed on the screen or in the e-mails when e meeting abnormal situation (cable broken)
• Support duple/quintuple/octuple compression and save and WAV format
• Support inquire, play and monitoring for the network.
• With the default multi-language of English, French, Portuguese, Vietnamese,Turkish, Spanish, Korea, Arabic, Plish, Hebrew, Serbian,




Equirement for the Hardware


Suggested PC CPU:
More than P4 3.0
Suggested Memory:
More than 2 GB
Suggested Hard Disk:
More than 500 GB




ZS-D5430 Connecting:   USB keypro*1,Software CD*1

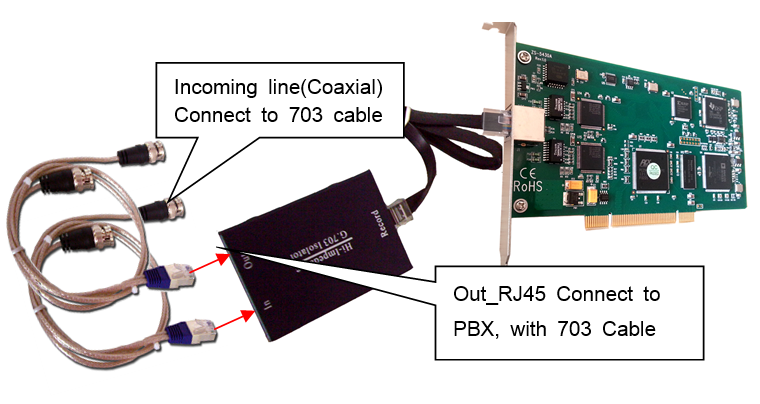

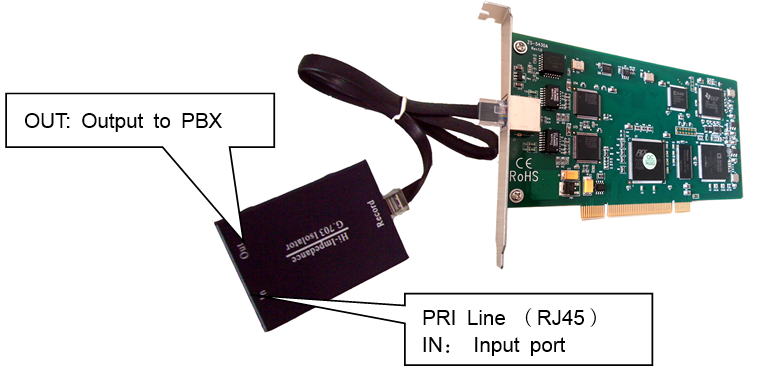

                                          5430  Packing list:5430*1,703 line*2,Hi-Impedance*1,Coaxial Connect*4
                                          5360  Packing list:5360*1,703 line*4,Hi-Impedance*2,Coaxial Connect*8










PCI D5430 / D5360 Tech Parameter:


D5430/5360 Card Size :180mm*120mm*20mm

Max insatllation for 1 PC

:5 piece cards work together in One PC

Compress Rate

:Hardware=8

Working Temperature

:0℃-50℃

Power Consumption

:5W

Humidity

:10%-80%

Storage Temperature

:-20℃-80℃

Voice Codec

:PCM A law@64Kbps, SPEEX@8Kbps

Voice Distortion Rate

:≤2%

Voice Function

:WAV, VD8,AGC

Data Rate

:64KBPS、32KBPS、16KBPS

Data Transmission

:Binary asynchronous serial

Singal Monitor

:Signal sound,voice sound

Signal-To-Noise

:≥30dB

Input Impedance

:>1000Ω

Codec

:HDB3 /AMI

DTMF Code

:0~9、*、#、A、B、C、D

Master number

:BEL202, DTMF

Frequency Range

:300-3400Hz(±3dB)

Clock and Data Recorering

:Complied to CCITT Rec.G.823-1998

Shaking limit:  Complied to CCITT Rec.G.823,G.737,G.739,G.742-1988
Phone Status Judge Voltage 70-100V(Ring), 20-48V(Idle) ,5-17V(Hang up) 3.2V(Power off)
