Model:ZS-D6430

E1/T1 card PCIe Port
Max 5 pcs cards in  PC


E1/T1/SS1/SS7 Digital TRK signal
PCIe slot, 8 Times compression hardware, Can Record 280 hours /G HDD






Telephone Voice Recording System TVRS basic function


Supports Windows XP/2000//2003/NT/Vista/Win7/Win8/Win10  32/64 Bit System
• PCIe card, 30 channels (30B D),  RJ45 jacket. Support E1, T1, PRI Signal.
• Support work with 3300/4500/D5000/D6000 series hardware together in same PC
• Support work with the CAS recorder to  get Extension.
• Support DTMF/FSK incoming CallerID, Support Incoming CallerID Popup​​​​
• Consists of the incoming customer management system to recognize the incomers and the Popup Screen
• Support monitor the conversation for every line on the real time by LAN
• Supports three recorder mode : Phone, Audio, Key
• Support list and print all the dialed-in, dialed-out and missed calls
• Can record the direct call. Support the simultaneous recording for the direct phone and extension
• Supports auto-backup, FTP back up the files onto the burning ROM, supports the auto fold repeat.
• The outward phone cables, extension cables, ISDN catalog cables, output cables for the wireless interphones are
• Alarm information displayed on the screen or in the e-mails when e meeting abnormal situation (cable broken)
• Support duple/quintuple/octuple compression and save and WAV format
• Support inquire, play and monitoring for the network.
• With the default multi-language of English, French, Portuguese, Vietnamese,Turkish, Spanish, Korea, Arabic, Polish, Hebrew, Serbian,










Requirement for the PC Hardware


Suggested PC CPU:
More than P4 3.0
Suggested Memory:
More than 2 GB
Suggested Hard Disk:
More than 500 GB

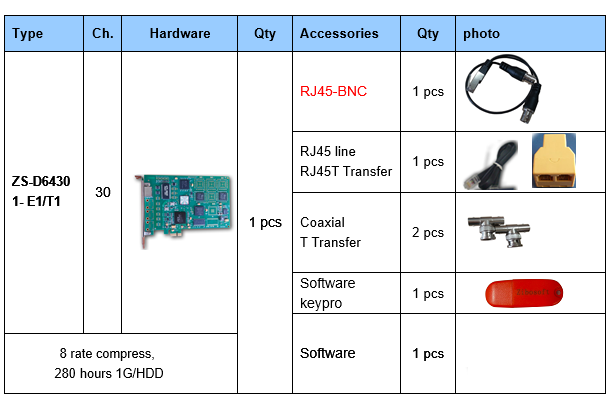

6430  Packing list:USB keypro*1,Software *1,Coaxial T*2, BNC*1

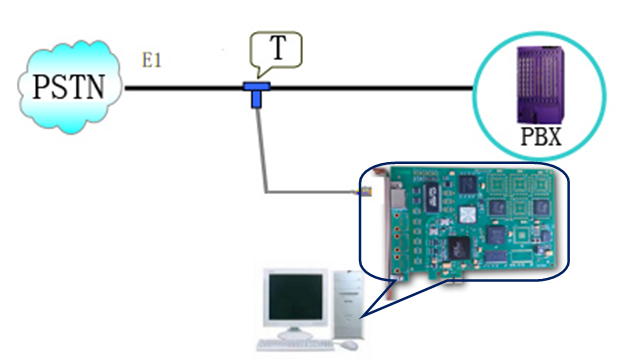

ZS-D6430 Connection:













PCIe E1/T1 card D6430  Tech Parameter:


ZS-PCIe-D6430 Card Size

:160mm*1112mm*20mm

Max insatllation for 1 PC

:5 piece cards work together in One PC

Compress Rate

:Hardware=8

Working Temperature

:0℃-55℃

Power Consumption

: 3.3V DC: 1.5A

Humidity

:8%-90%

Voice Codec

:PCM A law@64

  bps, SPEEX@8Kbps

Voice Distortion Rate

:≤2%

Voice Function

:WAV , MP3, DEC(G7.29)

Data Rate

:64KBPS、32KBPS、16KBPS

Signal

:SS1 /SS7 /T1 /E1

Input Impedance

:>1000Ω

Clock and Data Recorering

:CCITT A/μ-Law 64kbps IMA ADPCM 32kbps
