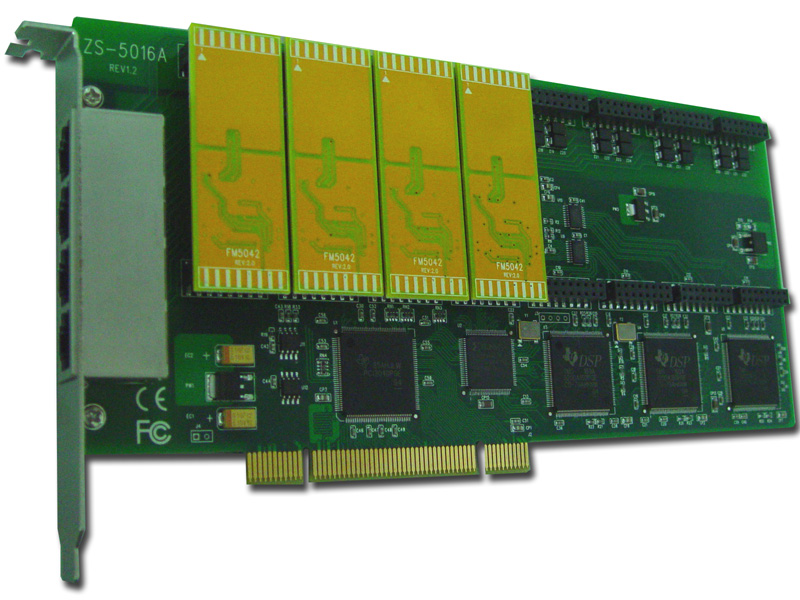

8ch Analog Telephone Recording Card
Max 5 pcs cards in a PC (40ch.)
size: 170*110*20 mm

Model: ZS-3016

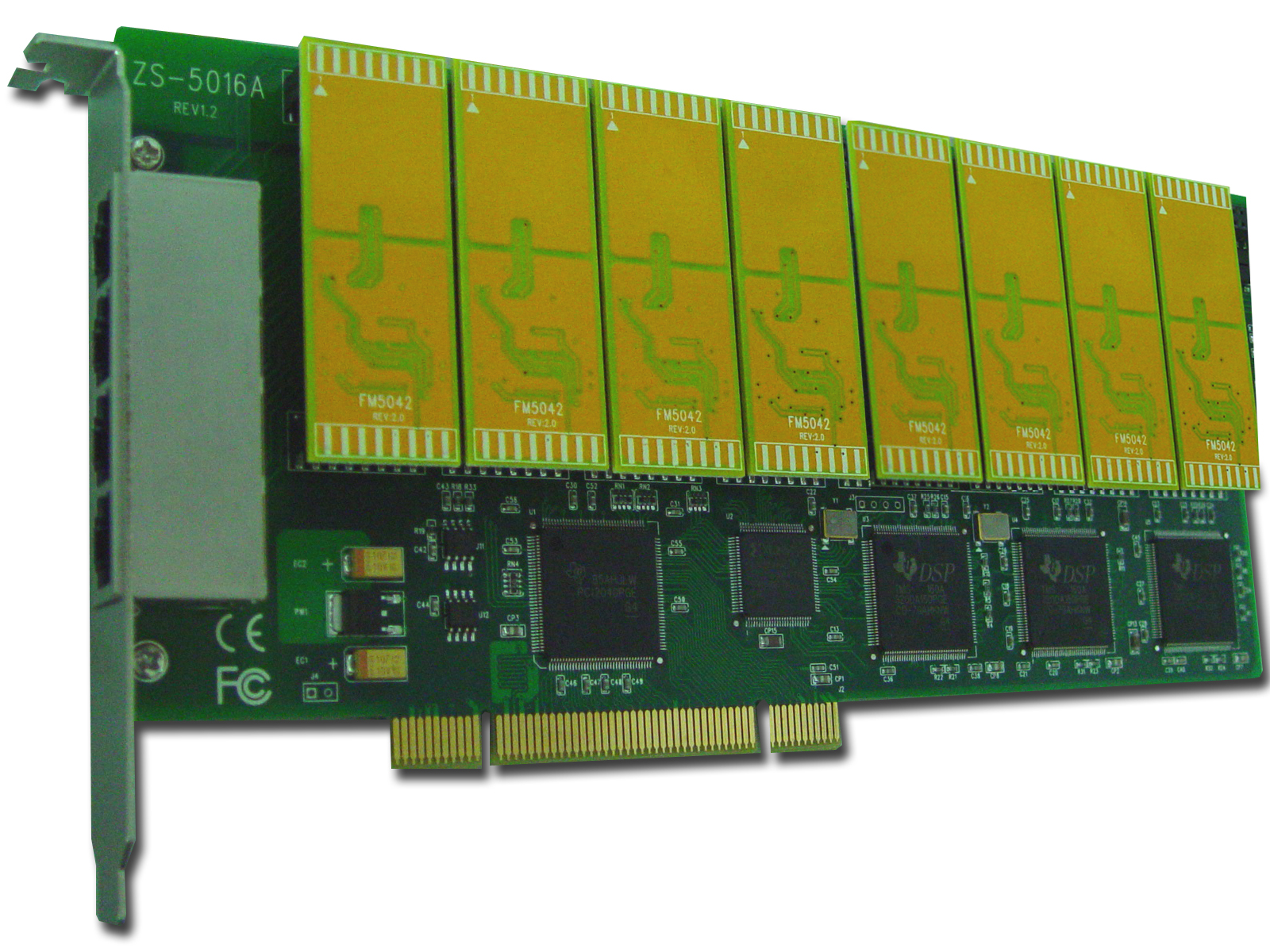

16ch Analog Telephone Recording Card
Max 5 pcs cards in  PC (80ch.)
size: 260*112*20 mm

PCI slot, 2 Times compression hardware, Can Record 70 hours/GB  HDD

Telephone Voice Recording System TVRS basic function

Supports Windows 11/win10/win8/win7/win XP operation System
• Support DTMF/FSK incoming CallerID, Support Incoming CallerID Popup​​​​
Support work with the CAS recorder to Extension.

• Consists of the incoming customer management system to recognize the incomers and the Popup Screen
• Support monitor the conversation for every line on the real time by LAN
• Supports three recorder mode : Phone, Audio, Key
• Support list and print all the dialed-in, dialed-out and missed calls
• Can record the direct call. Support the simultaneous recording for the direct phone and extension
• Supports auto-backup, FTP back up the files onto the burning ROM, supports the auto fold repeat.
• The outward phone cables, extension cables, ISDN catalog cables, output cables for the wireless interphones are
• Alarm information displayed on the screen or in the e-mails when e meeting abnormal situation (cable broken)
• Support duple/quintuple/octuple compression and save and WAV format
• Support inquire, play and monitoring for the network.
• With the default multi-language of English, French, Portuguese, Vietnamese,Turkish, Spanish, Korea, Arabic, Polish, Hebrew, Serbian,


Requirement for the PC Hardware

Suggested PC CPU:
More than P4 3.0
Suggested Memory:
More than 2 GB
Suggested Hard Disk:
More than 500 GB


  3108 Packing list:3108*1,USB keypro*1,Software *1,RJ11 line*4
  3016 Packing list:3016*1,USB keypro*1,Software *1,RJ45 line*4

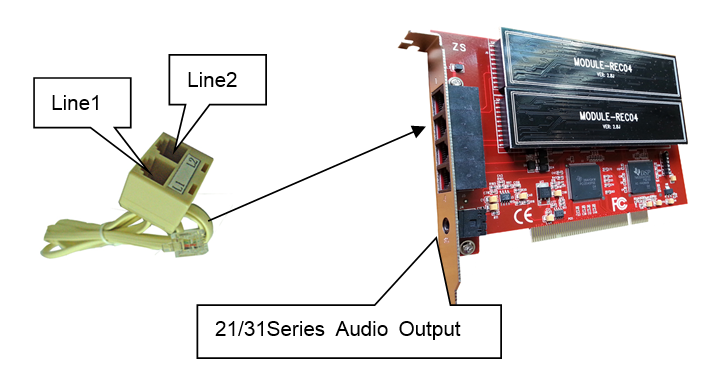

ZS-3108  Connection

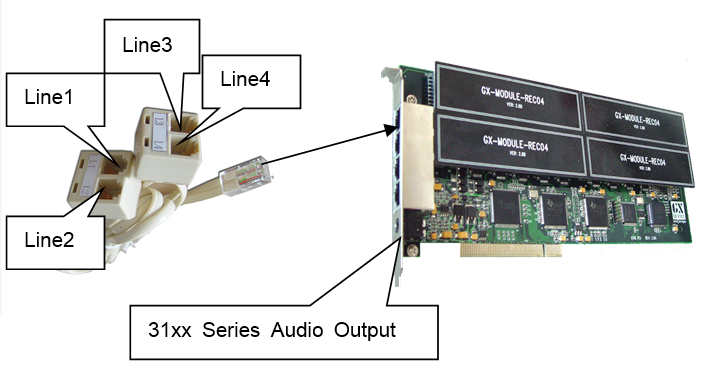

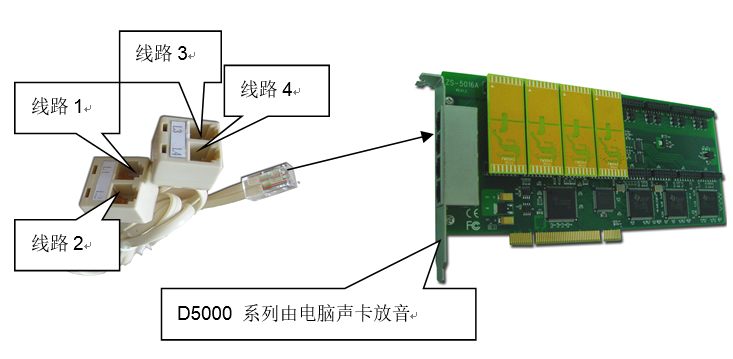

ZS-3016  Connection:



PCI 3100 Series Tech Parameter:

Max installation for 1 PC

:Support 5 pieces work with  in One PC

Compress Rate


Working Temperature


Power Consumption




Storage Temperature


Voice Distortion Rate


Voice Function


Module voltage resistance:


Data Rate


Data Transmission

:Binary asynchronous serial





Frequency Range


Caller ID




FSK Modulate Mode

:Logical 0:2200Hz±1%

Input Impedance


Signal Monitor

:Signal sound,voice sound

Frame Structure

:CCITT G.704-1988

Clock and Data Recorering

:Complied to CCITT Rec.G.823-1988

Shaking limit:   Complied to CCITT Rec.G.823,G.737,G.739,G.742-1988
Phone Status Judge Voltage 70-100V(Ring), 20-48V(Idle) , 5-17V(Hang up), 3.2V(Power off)
